6x6 Hydraulic Dump Truck - Remote Control Off-Road Toy Truck Model
“Unleash your inner adventurer with the Horizon Walker – a meticulously crafted timepiece designed for those who chase the extraordinary. This isn't just a watch; it’s a statement of daring, boasting a rugged titanium casing, a sapphire crystal face, and a movement that feels like a pulse of raw energy. Conquer your day, embrace the unknown, and let the Horizon Walker guide your every step.”

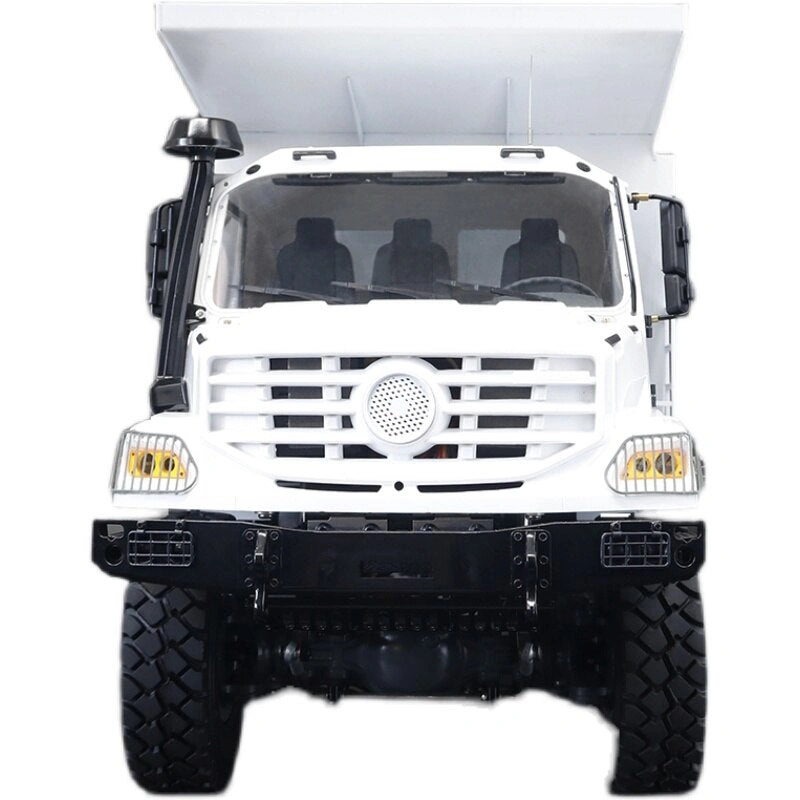

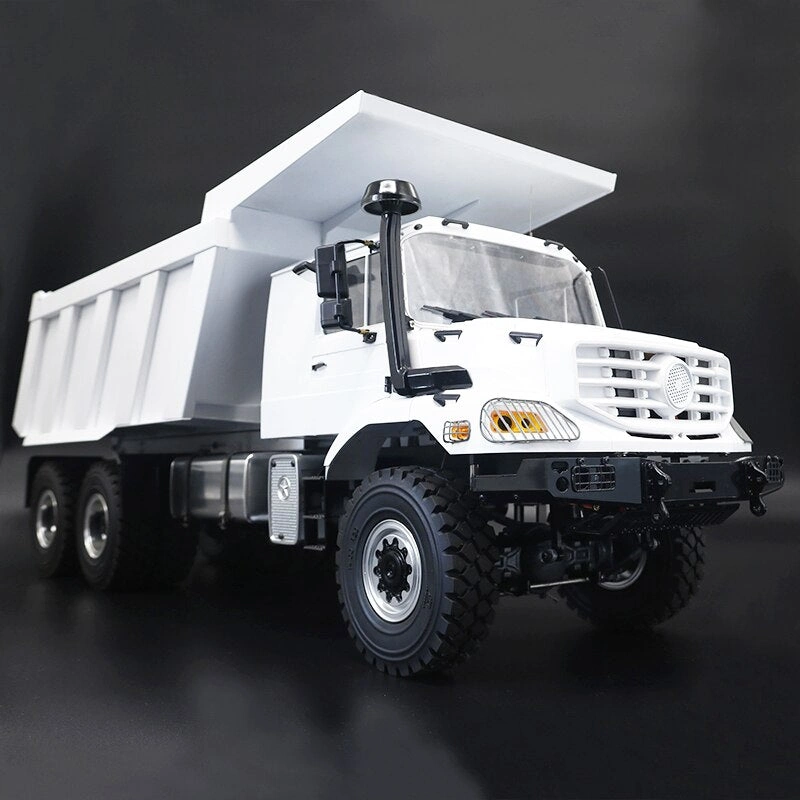

In stock 1/14 metal 6 × 6 hydraulic dump truck with differential lock remote control toys off-road truck toy model
Note: The remote control uses 4 AA batteries, the main car battery 11.1V3S lithium battery or 12V battery, and the battery connector is XT60.
Operation steps: first turn on the remote control, (the switch or knob of the remote control should be in the default position), then connect the main car power supply, wait for the signal sound to confirm the operation (about 5S), if you operate in advance, it is likely to make the power Tune into setting mode,As a result, the ESC cannot work normally.
Ratio: 1:14
Dimensions: length 674, width 227, height 273, unit MM
Wheelbase: front axle to middle axle 363, middle axle to rear axle 115, unit MM
Front shock absorber stroke: 20 MM
Gearbox: All-metal simulation planetary two-speed gearbox
Axle: Metal axle with differential lock function

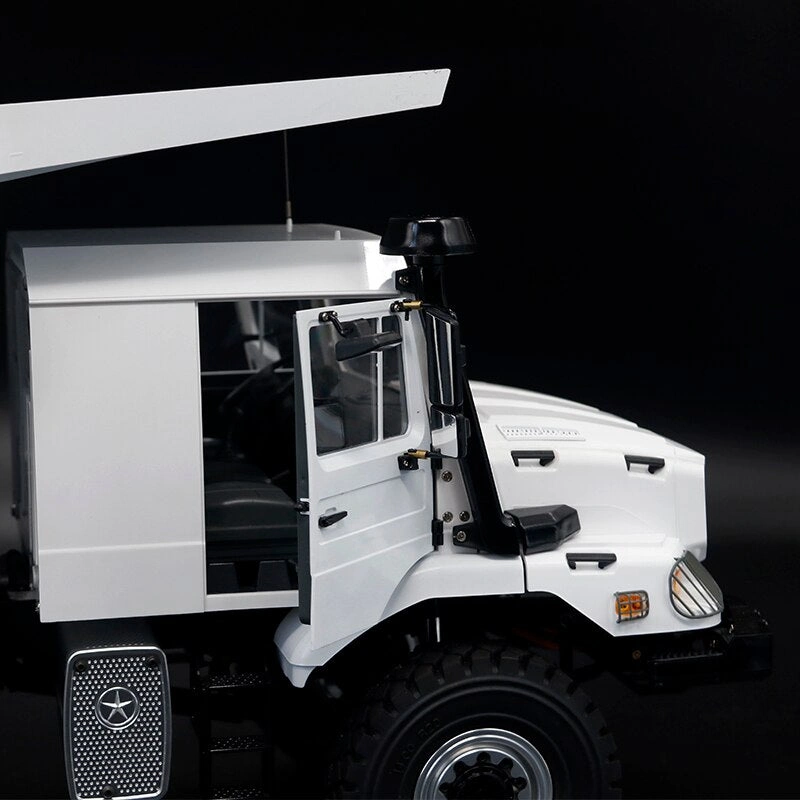

Car shell: plastic simulation hard shell, with interior, the door can be opened, the hood can be opened, and the simulation car lights
Chassis: front suspension with anti-roll bar, all metal outside the battery box, simulation pedal, oil tank, exhaust pipe, metal beam, metal wheel hub, etc.

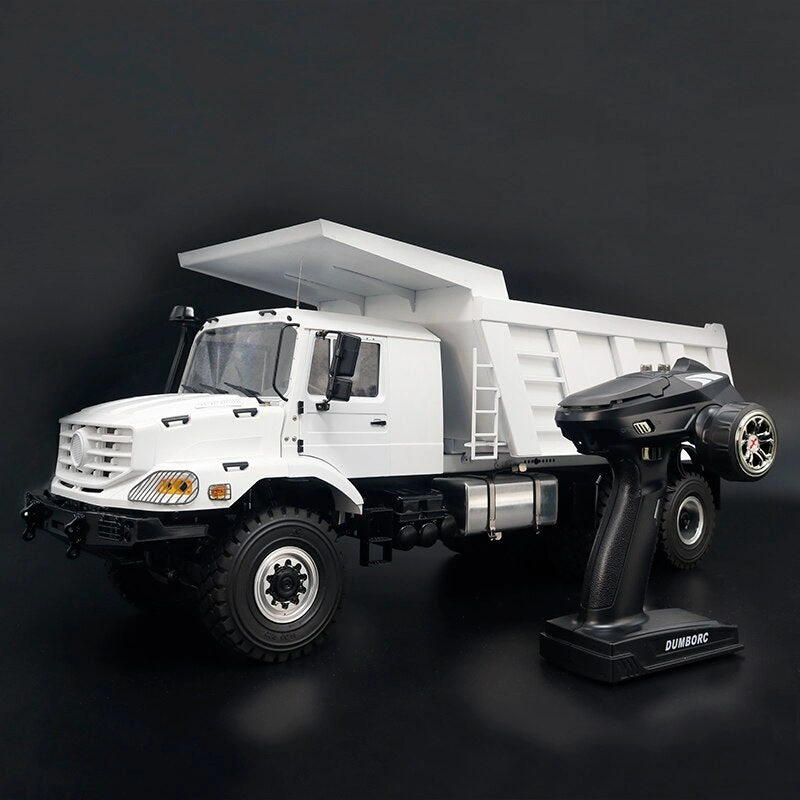

Remote control: Dumbo DUMBO-X6
ESC: Hobbywing 1060
Servo: Desheng customized version S15
Motor: Snow Leopard 35T
Oil pump: oil pump pressure 5 MPa

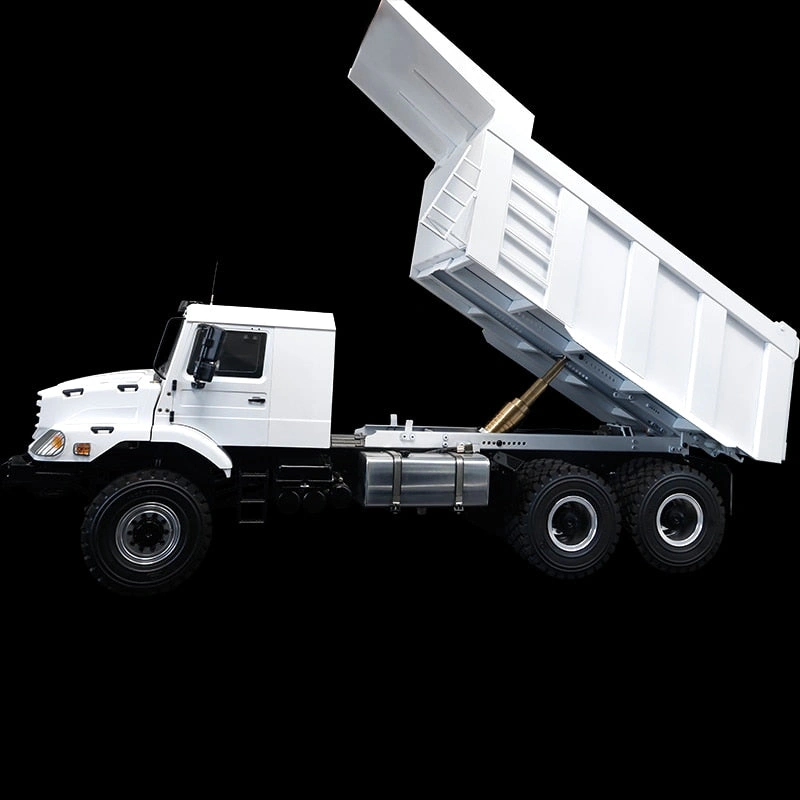

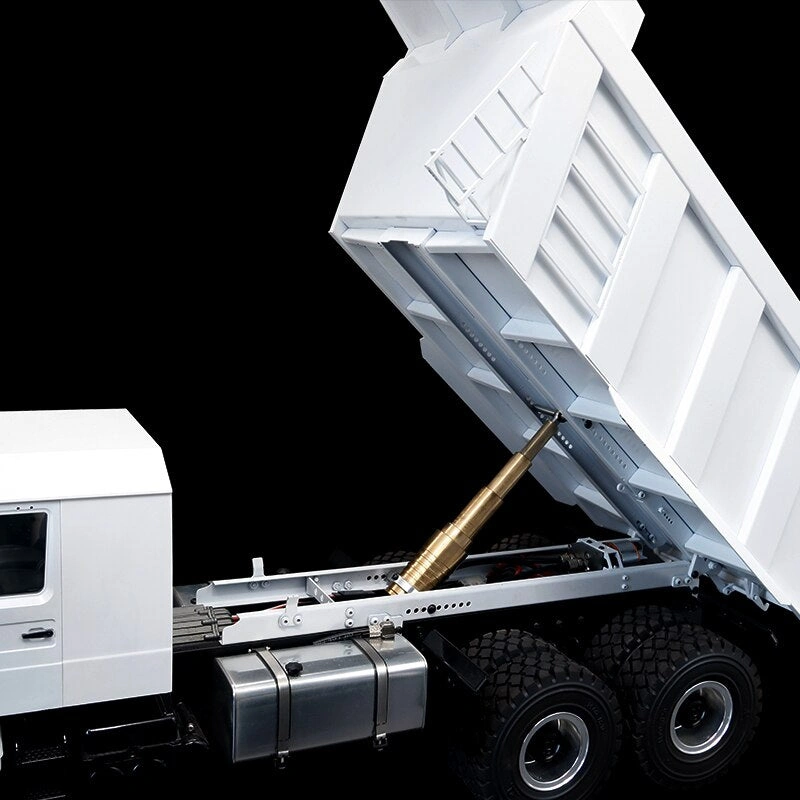

Cylinder: 5-section copper multi-stage cylinder
Fuel tank: aluminum alloy simulation fuel tank, please inject 120ML hydraulic oil (No. 32 or No. 46) for the first use
Battery specifications: 3S, 5200mAh, 11.1V, 25C or more; battery compartment size: 142*45*40MM (battery size is within this range)
Vehicle weight: 10KG
Theoretical load: 15KG
Total load weight: 25KG
